Black - Shimano Compatible, BB30 to Outboard Btm. Bracket

Bottom Brackets by Wheels Manufacturing

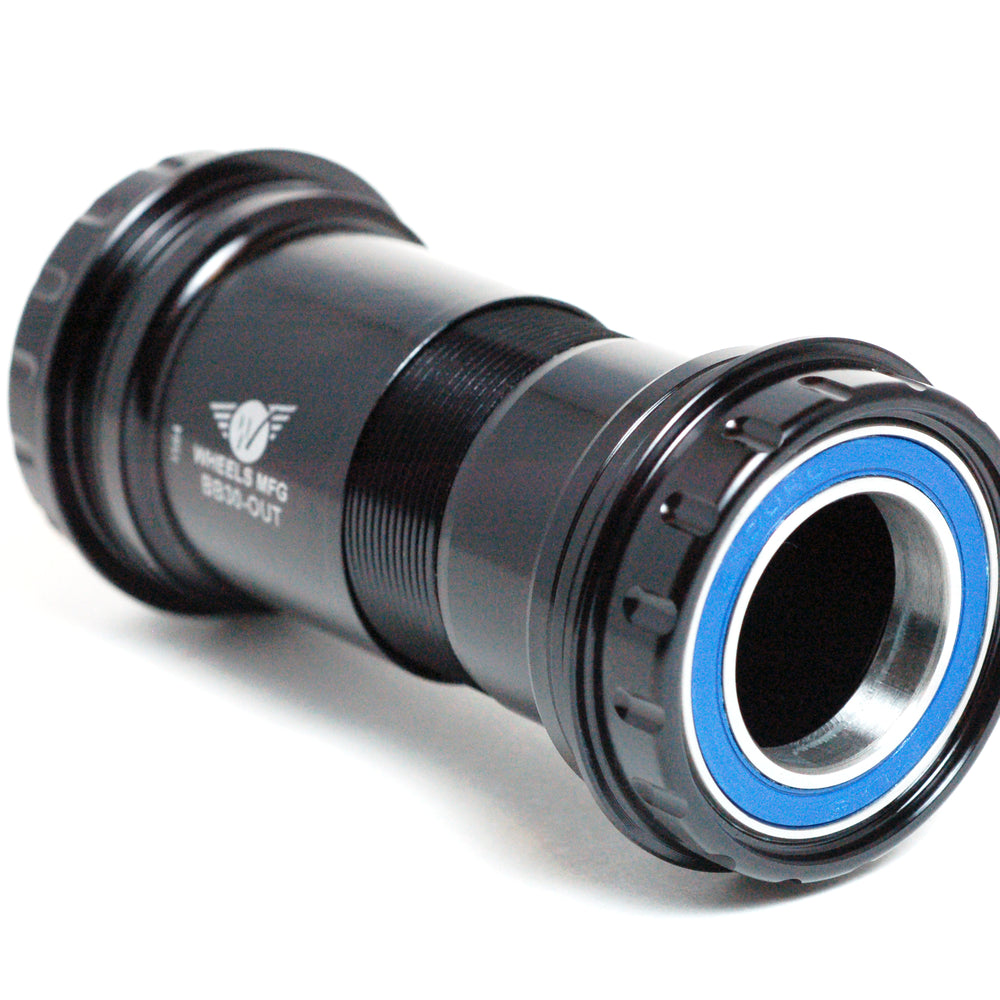

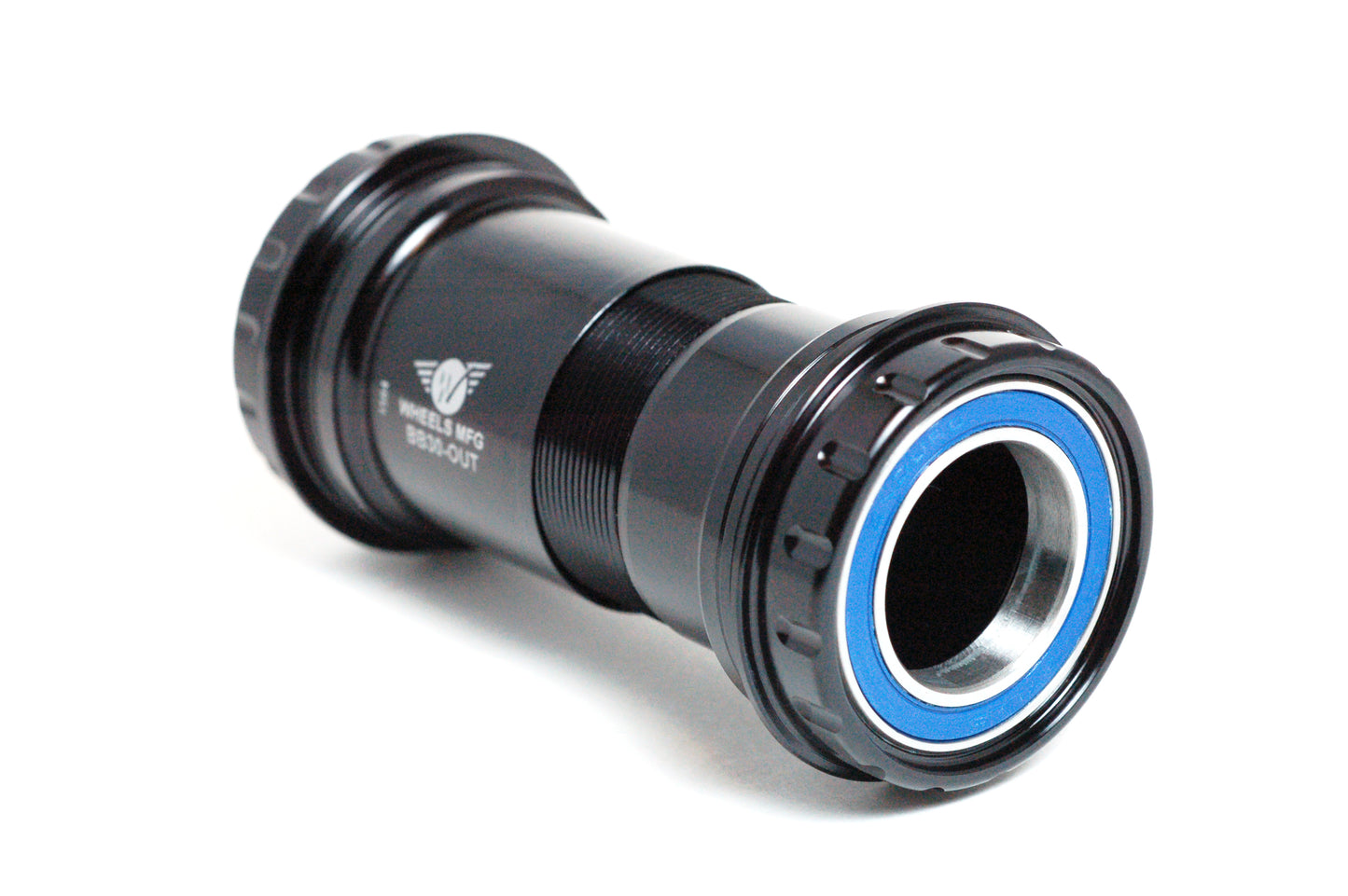

BB30 Outboard ABEC-3 BB for 24mm Cranks (Shimano) - Black

BB30 Outboard InstallationTwo machined aluminum cups thread together keeping the bottom bracket stable in the frame, increasing bearing life, and simplifying maintenance. This means no more creaking, smoother operation, longer bearing life, and really quick bearing replacement.

Specifically designed for installing 24.00mm spindle diameter cranks (Shimano, Etc.) in BB30 (42mm ID BB shell) frames without the need for any adapters.

  • Bearings: Enduro ABEC-3
  • Color: Black
  • Bottom Bracket/Frame Interface: BB30, Specialized Alloy OSBB
  • Bottom Bracket Shell Width: 68mm - 73mm
  • Bottom Bracket Shell I.D.: 42mm
  • Over Bearing Width: 90.5mm in 68mm wide shell*
  • Crank Spindle Diameter: 24.00mm
  • Tool Pattern: 44mm, 16-notch
  • Weight: 130g
  • Packaged for retail display
  • View more detail on WheelsMFG.com

* Over Bearing Width Dimensions include supplied silicone dust shields.

Note: FSA MegaExo spindles can be between 24.00mm and 24.07mm in diameter. If your FSA spindle is 24.07mm, this BB will not work! You will need to swap the bearings with our FSA 24.07x37 ceramic hybrid bearings.
