EC70 AX Disc Wheelsets

Wheelsets by Easton

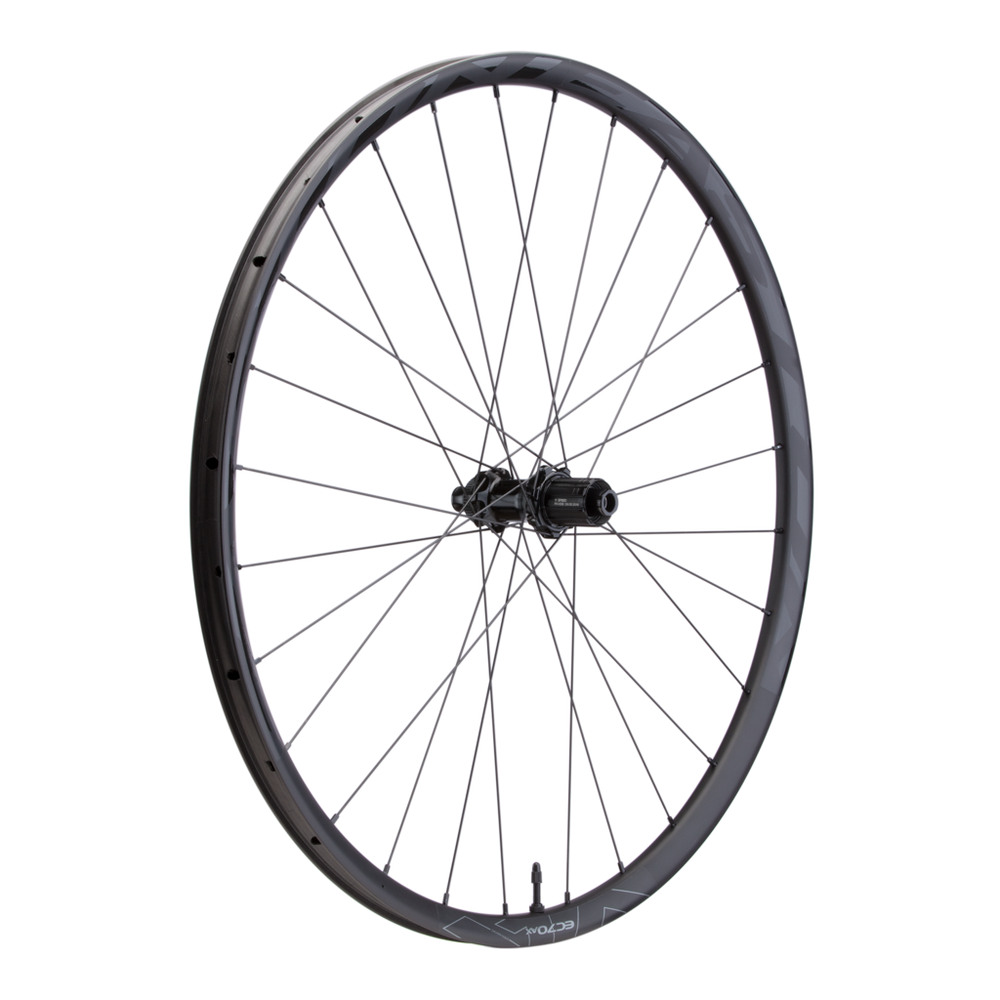

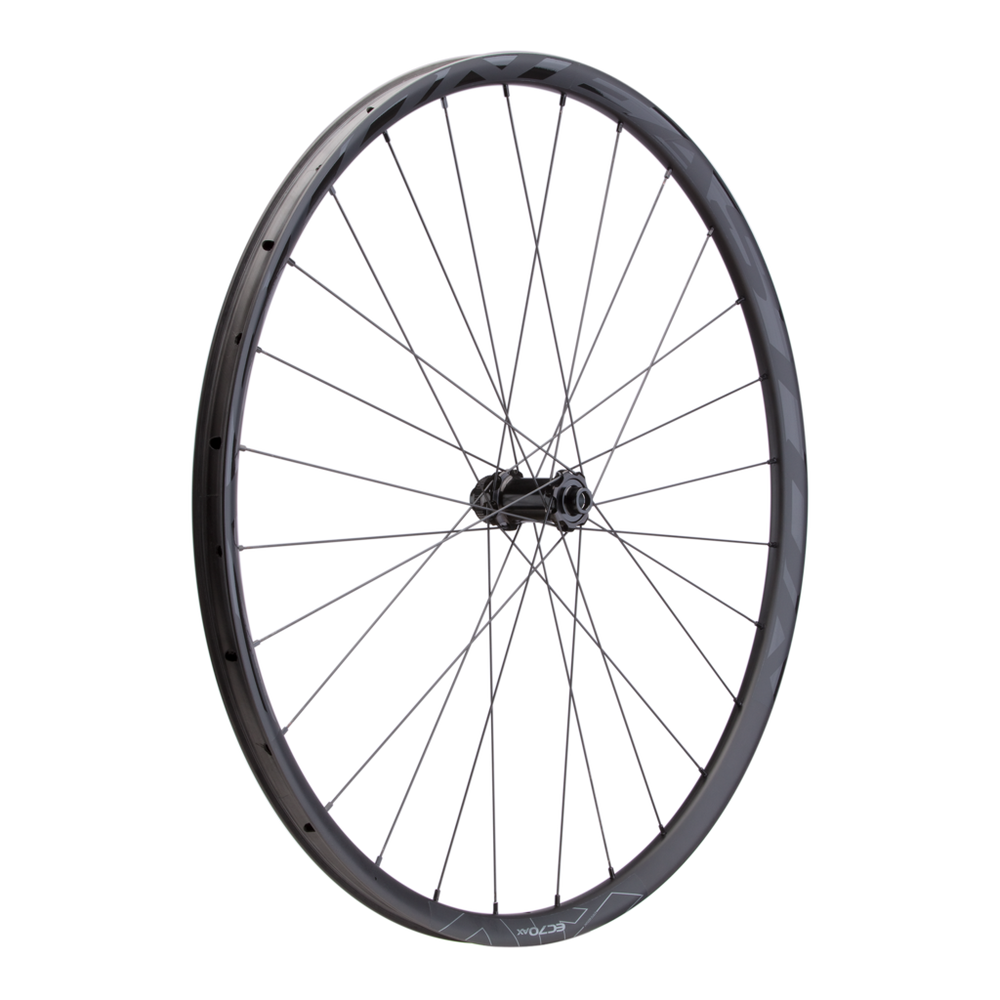

EC70 AX Wheels 700C

These connect EC70 carbon rims to our proven X5 CL hub with 28 3x double butted Sapim straight pull spokes. End cap and axle components are available for all major industry standards.

Wide, 24mm internal rims are optimized for gravel tires 35mm and larger, giving you a more confident tire stance for control on the ground during your expansive adventure rides, single track forays and unrelenting gravel races.

Our Easton Overland team and SDG Muscle Monster team riders have put these wheels to the test, racing prototypes at DK200, with Amity Rockwell taking the DK Queen title.

WHEELSET WEIGHT - 1515  g
TYPE - TUBELESS READY CARBON CLINCHER
RIM DEPTH - 21MM
INTERNAL RIM WIDTH - 24MM
EXTERNAL RIM WIDTH - 28MM
SPOKES - SAPIM STRAIGHT-PULL DOUBLE BUTTED
SPOKE PATTERN - 28 / 3X
BRAKING SURFACE - DISC - CENTER LOCK
NIPPLE TYPE - DT EXTERNAL ALLOY
FRONT/REAR HUB - EASTON X5 CENTER-LOCK 15X100/QR OR 12X100 /  12X142/QR
BEARING TYPE - SEALED CARTRIDGE BEARINGS

More info on Eastoncycling.com

EC70 AX Disc Wheelsets

Wheelsets by Easton
EC70 AX Disc Wheelsets EC70 AX Disc Wheelsets
EC70 AX Disc Wheelsets EC70 AX Disc Wheelsets

EC70 AX Disc Wheelsets

SKU:WS.71741020
Wheelsets by Easton
SKU:WS.71741020
Configuration

EC70 AX Wheels 700C

These connect EC70 carbon rims to our proven X5 CL hub with 28 3x double butted Sapim straight pull spokes. End cap and axle components are available for all major industry standards.

Wide, 24mm internal rims are optimized for gravel tires 35mm and larger, giving you a more confident tire stance for control on the ground during your expansive adventure rides, single track forays and unrelenting gravel races.

Our Easton Overland team and SDG Muscle Monster team riders have put these wheels to the test, racing prototypes at DK200, with Amity Rockwell taking the DK Queen title.

WHEELSET WEIGHT - 1515  g
TYPE - TUBELESS READY CARBON CLINCHER
RIM DEPTH - 21MM
INTERNAL RIM WIDTH - 24MM
EXTERNAL RIM WIDTH - 28MM
SPOKES - SAPIM STRAIGHT-PULL DOUBLE BUTTED
SPOKE PATTERN - 28 / 3X
BRAKING SURFACE - DISC - CENTER LOCK
NIPPLE TYPE - DT EXTERNAL ALLOY
FRONT/REAR HUB - EASTON X5 CENTER-LOCK 15X100/QR OR 12X100 /  12X142/QR
BEARING TYPE - SEALED CARTRIDGE BEARINGS

More info on Eastoncycling.com
